Bolted Type Batching Plant Cement Silo 150 Ton With Dust Collector And Level Indicator

Name: Bolted Type Batching Plant Cement Silo 150 Ton With Dust Collector And Level Indicator
Brand: ENCKE
Price: 1 USD

Wholesale Bolted Type Batching Plant Cement Silo 150 Ton With Dust Collector And Level Indicator from china suppliers

Brand Name : ENCKE

Model Number : BCS 150

Certification : CE

Place of Origin : Mainland

MOQ : 1 set

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Delivery Time : 5-8 work days

Packaging Details : Stand Container

Type : Bolted

Material Level Detection : Level Indicator

Feed From : Pneumatic Conveying

Dust Filter : Dust Filter 24.5 ㎡

Safety : Pressure Relief Valve

Color : According to customer requirements

Contact Now

General technical information:

The silo is combined by four main parts: the cover, wall sections, cones and supporting legs. All parts are pressed by special machine and mould, especially the wall sections which can be changed every place on the wall.

The silo can be dismantled into many parts when transport, and can be installed with bolts easily, a 100T capacity silo can be assembled by 3 men in 3 days, so it is easy to transport and convenient to use.

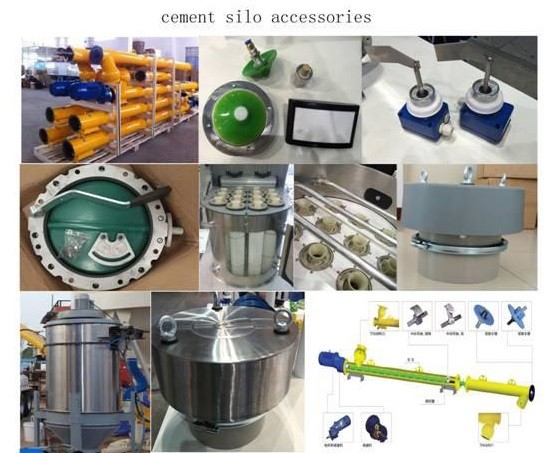

It is equipped with automatic dust collector, butterfly valve, automatic broken arch and the upper and lower level indicators and other facilities.

Technical features:

Capacity	Diameter	*Height	Supporting Legs	Thickness of Steel Plate	Weight
50T	3160 mm	6.5 m	219	4mm	3.7T
100T	3160 mm	10.7 m	219	4mm	5.5T
150T	3160 mm	15 m	219	4mm cone 5mm	8T
200T	4500 mm	11.5 m	273	5mm cone 6mm	12T
300T	5300 mm	12.7 m	325	6mm cone 8mm	17T
400T	6800 mm	11.7 m	325	6mm cone 8mm	21T
500T	6800 mm	13.5 m	325	6mm cone 8mm	28T

Detail show:

Bolted Type Batching Plant Cement Silo 150 Ton With Dust Collector And Level Indicator
